Fibersystem Fiber Optical Converters/Extenders: Bridging Distances, Enhancing Connectivity. Expand your network’s reach and performance with Fibersystem Fiber Optical Converters/Extenders. Designed to extend the range of your data communications without sacrificing speed or quality, these devices are the perfect solution for organizations looking to enhance their network infrastructure efficiently.
Reach out today to learn how our solutions can help you achieve optimal network efficiency and reliability.
Discover more types of this product area
Fiber Optical Converter G.703-C37.94 E1 820nm Multimode
21-219 is an electro optical multiplexer between one G.703/704 E1 and two IEEE C37.94 (C3794) optical ports. The two IEEE ports are fully mapped into G.703 (G703) standard frame structure of the E1 port, allowing for further SDH/ PDH multiplexing and de-multiplexing. 21-219 derives it synchronization from the network port (E1) or from an internal 2048Kbps PDH compliant clock enabling it to...
Fiber Optical Conv G.703 Codir C37.94 MM
The Fiber Optical Converter G.703 Codir – IEEE C37.94 (C3794) (21-216) is intended for connecting tele protection equipment to telecom multiplexers at substations. It can also be used to directly interconnect protection equipment and multiplexers to use the IEEE C37.94 standard to interconnect with equipment that only support G.703 interfaces.
Fiber Optical Extender 80-120km
Fibersystem 21-223 SM/SM Extender (converter) is intended to extend optical reach for low speed data signal into long haul distances. Using a 21-223 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications. When combined with the other products in Fibersystems teleprotection communication product line this converter allows a...
Fiber Optical Converter IEEE C37.94 MM/SM
21-203 is a protocol independent optical-electrical-optical long haul converter link with data integrity control for high reliability. The incoming multimode signal is sampled and packaged in 4B/5B code before transmission on the singlemode interface. Incoming singlemode signal is decoded and error detected before reassembled and transmitted out the multimode interface. This conversion method offers a better (lower) error rate for low speed...
Fiber Optical Extender M/R -200km
Fibersystem 21-223 SM/SM Extender (converter) is intended to extend optical reach for low speed data signal into long haul distances. Using a 21-223 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications. When combined with the other products in Fibersystems teleprotection communication product line this converter allows a...
Fiber Optical Extender L/R -250km
Fibersystem 21-223 SM/SM Extender (converter) is intended to extend optical reach for low speed data signal into long haul distances. Using a 21-223 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications. When combined with the other products in Fibersystems teleprotection communication product line this converter allows a...
Fiber Optical Converter G.703 Codir C37.94 SM
The Fiber Optical Converter G.703 Codir – IEEE C37.94 (C3794) (21-216) is intended for connecting tele protection equipment to telecom multiplexers at substations. It can also be used to directly interconnect protection equipment and multiplexers to use the IEEE C37.94 standard to interconnect with equipment that only support G.703 interfaces.
Fiber Optical Converter SC SMF 40km
Fibersystem media converters for RS-232 are encapsulated in corrosive protected steel which gives them a very good protection against electrical and magnetic fields. The dimensions are small and with a unique design with either nut or screw fastening of electric connector. The media converter can easily be mounted either on a connector or directly on a cable. This give the possibility to...

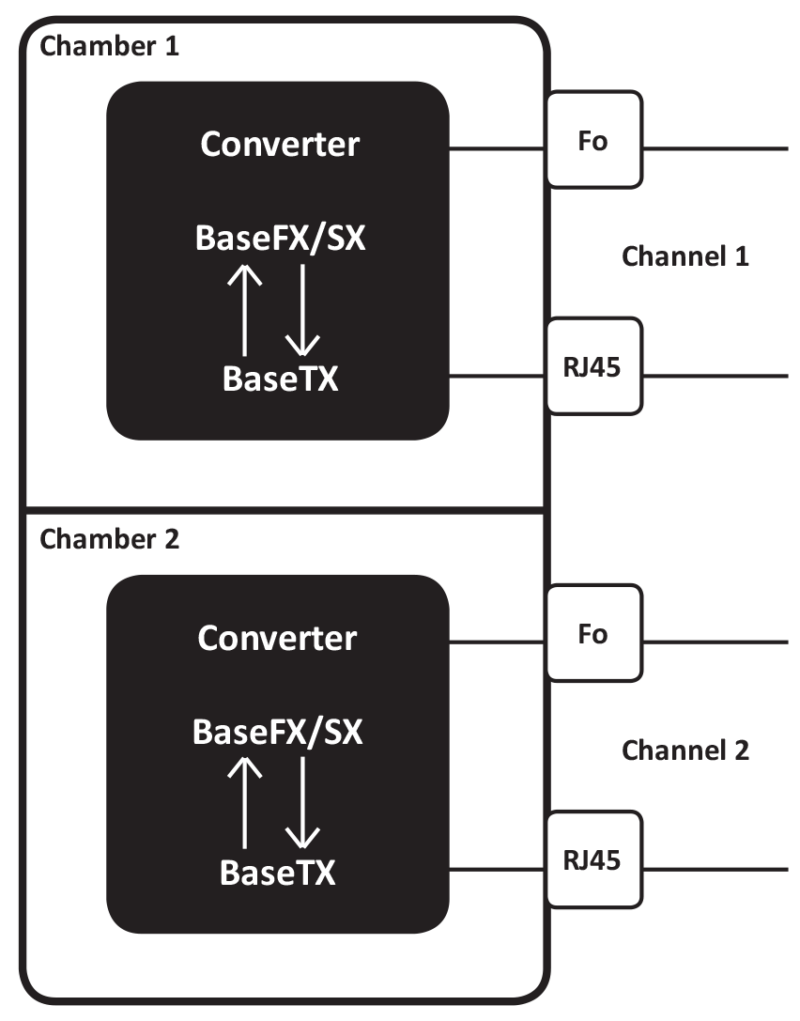

Ethernet Fiber Optical Dual Converter 1 Gbit
Fibersystem's Ethernet Fiber Optical Dual Converter is a secure rack-mounted module featuring two fully independent channels, specifically designed to prevent crosstalk between channels. The product is robust, tamper-resistant, and housed in an EMC-shielded enclosure. It is available in versions supporting Gbps speeds. The module fits Fibersystem's 19-inch rack system or can be used in standalone configurations, making it ideal for integration into...
Ethernet Fiber Optical Dual Converter 100Mbit/1Gbit
Fibersystem's Ethernet Fiber Optical Dual Converter is a secure rack-mounted module featuring two fully independent channels, specifically designed to prevent crosstalk between channels. The product is robust, tamper-resistant, and housed in an EMC-shielded enclosure. It is available in versions supporting 100 Mbps/1 Gbps speeds. The module fits Fibersystem's 19-inch rack system or can be used in standalone configurations, making it ideal for...
Ethernet Fiber Optical Dual Converter 100 Mbit
Fibersystem's Ethernet Fiber Optical Dual Converter is a secure rack-mounted module featuring two fully independent channels, specifically designed to prevent crosstalk between channels. The product is robust, tamper-resistant, and housed in an EMC-shielded enclosure. It is available in versions supporting 100 Mbps speeds. The module fits Fibersystem's 19-inch rack system or can be used in standalone configurations, making it ideal for integration...
Card Module 1000BaseT-1000BaseSX/LX LC
Fibersystem Card Module 1000BaseT-1000BaseSX/LX LC converts 1000Mbps copper link (RJ45 connector) to 1000Mbps fiber optic link (LC connector). It allows distances up to 2 km. Fibersystems Rack system is designed to provide a flexible manageable system for cardmodules. With its modular architecture and add-as-you-grow design it serves as the optimal platform for small and large installations. (Accessory to Fibersystem Rack System)
