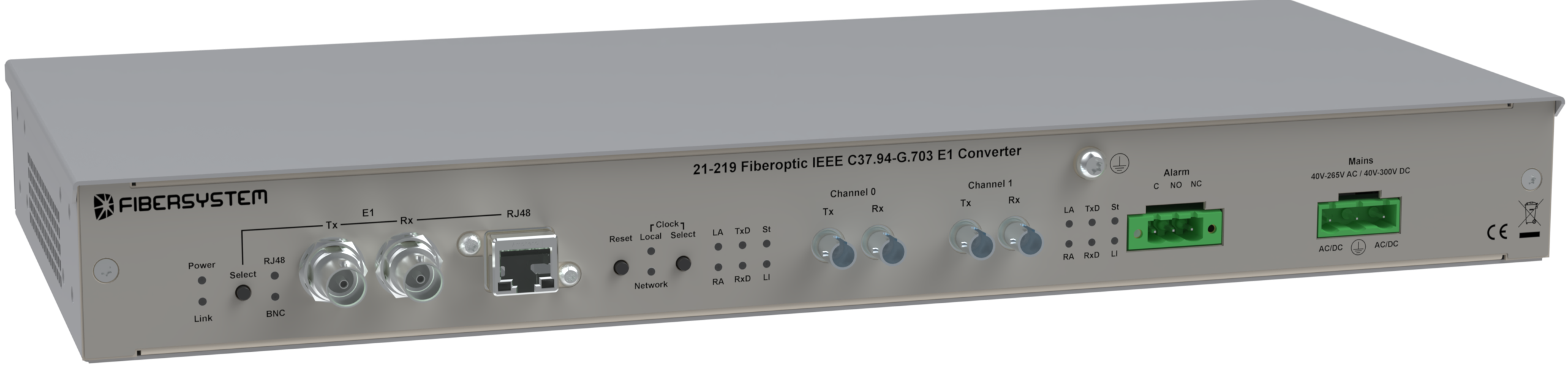

Fiber Optical Converter IEEE C37.94 – G.703 E1 (21-219v2)
The 21-219, Fiber optic converter IEEE C37.94 – G.703 E1 is intended to extend distance and galvanic isolate the teleprotection equipment for substations connection to telecom network. The 21-219 is an electro optical multiplexer between one G.703 E1 and two IEEE C37.94 optical ports. The two IEEE ports are fully mapped into the G.703 standard frame structure of the E1 port, allowing for further SDH/PDH multiplexing and de-multiplexing.
21-219 derives it synchronization from the network port (E1) or from an internal 2048Kbps PDH compliant clock enabling it to be used in leased line applications using electrical E1 modems such as SHDSL and alike.
Product Description
- Τwo independent IEEE C37.94 fiber optical connections over a single E1
- Standards compliant for power substation installation
- 19” mounting with only 200mm depth
- Single supply range from 48VDC to 230VA
- Added feature: RJ48 (120 Ohm balanced )
- Added feature: Alarm function
- Added feature: Separate DC-/ AC-power connector
Technical Data & Features
Fiber optical link
- Data speed: 2.048Mbit/s, IEEE C37.94 protocol
- Wavelength: 820nm
- Fiber optical connector: ST
- Optical System budget: 13dB with multimode fiber, (62.5/125 um) 9dB with multimode fiber, (50/125 um)
- Typical distance: 2km (6dB system margin for 62.5/125 and 3dB margin for 50/125)
G.703 – E1
- Interface: 2 BNCs, unbalanced 75 Ohm
- Interface: RJ48 balanced 120ohm
- Protocol: G.703, G.704, 2048 kbit/s. PCM31 or PCM31C, (CRC-check is not used by 21-219)
Alarm output data
- Output: Galvanic isolated, with three connectors, normally open or normally closed.
- Electrical performance: Max 60V DC or max 40V AC. Maximum load, 1 A
- Connector: Terminal Block, 3-pin
Power Supply
Mains power input
- AC supply range: 40V AC to 265V AC, 50Hz/60Hz
- DC supply range: 40V DC to 300V DC
- Recommended connector: Phoenix 1939413 or similar
- Power consumption: <10W
Environmental
- Operating Temperature Range -25 to +70°
- Storage Temperature Range -40 to +85°
- Relative Humidity Operating 5 to 95%
- Relative Humidity Storage 5 to 95% non condensing
CE compliance
- LVD EN 50178, RIV = 250V OVC = III
- EMC IEC 60255-26
Mechanical
- Vibration IEC 60255-21-1 Class 2
- Shock IEC 60255-21-2 Class 2
EMC compliance
- Radiated Emission CISPR 11, CISPR 32
- Conducted Emission CISPR 32
- Immunity IEC 61000-4-3
- ESD IEC 61000-4-2, contact 6kV, air 8kV
- Burst Power IEC 61000-4-4
- Burst Communication IEC 61000-4-4
- Fast transient Power IEC 61000-4-4
- Fast transient Communication IEC 61000-4-4
- Conducted disturbance: IEC 61000-4-6
- Electrical fast transients/burst: IEC 61000-4-4
- Damped oscillatory waves: IEC 61000-4-18
- Surge: IEC 61000-4-5
- AC and DC dips: IEC 61000-4-11 and IEC 61000-4-29
- AC and DC voltage interrupts: IEC 61000-4-11 and IEC 61000-4-29
- Ripple DC input power immunity: IEC 61000-4-17
- Power frequency magnetic field: IEC 61000-4-8
Insulation
- Dielectric Test IEC 60255-5, 2,0kV 1min
- Impulse Voltage Test IEC 60255 / EN50178 5kV / 6 kV
- Insulation Resistance IEC 60255-5; > 100Mohm at 500VDC
Dimensions and Weight
- Physical size Height 45mm, Width 483mm, Without brackets 380mm), Depth 173mm
- Weight 3 kg
