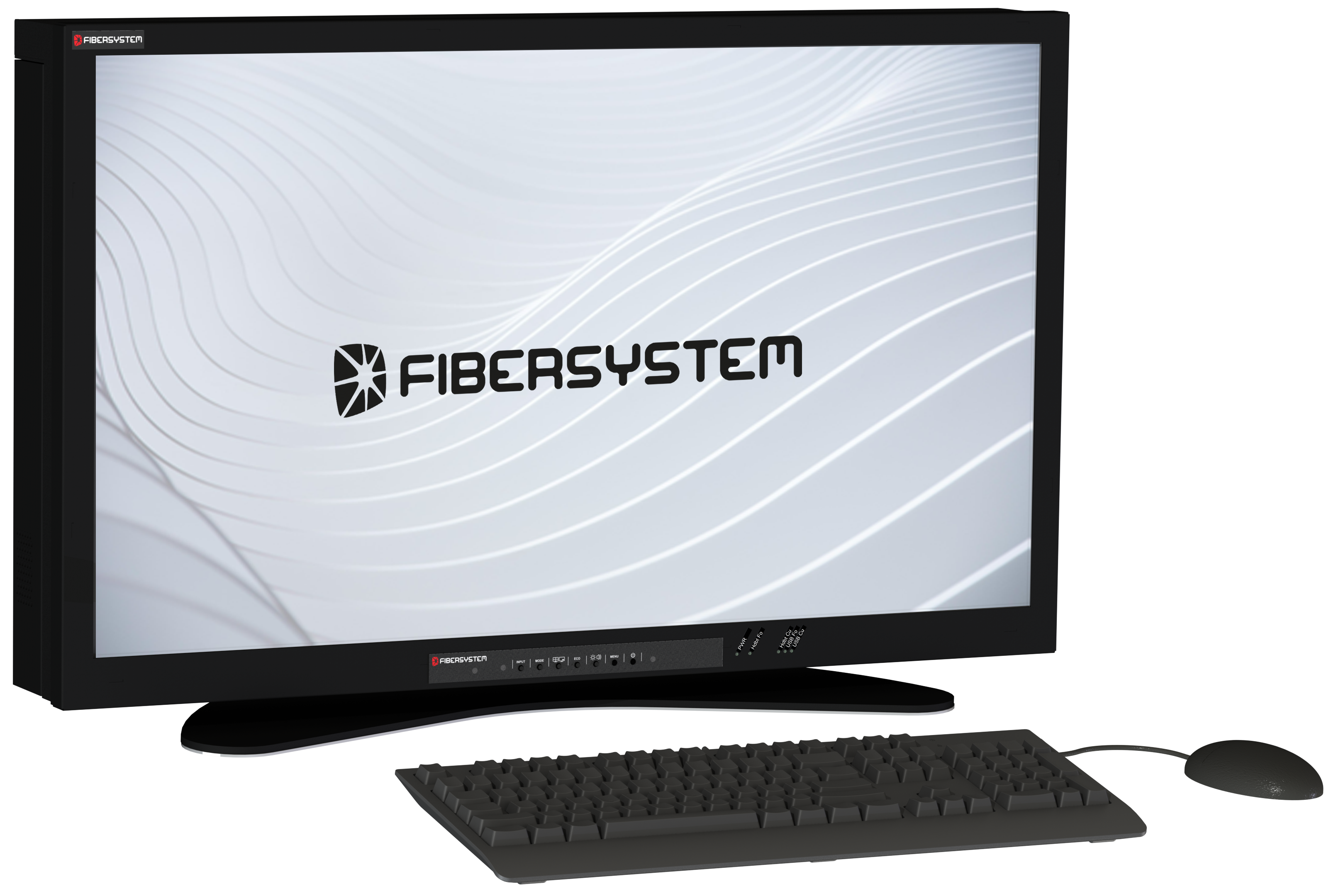

KVM Monitor 32” HDBaseT (TEMPEST Level A & RÖS U1)
The Fibersystem HDBaseT™ Monitor KVM (Keyboard Video Mouse) allows secure, remote CPU location with extended range and sustained transfer rate using a HDBaseT technology over fiber communications link for ultra-high resolution video, audio, Ethernet, Controls and USB peripheral data. The solution offers distance of up to 80 kilometers between server and monitor with minimal latency. (TEMPEST Level A/ EMSEC/ RÖS U1).
Product Description
The Fibersystem HDBaseT™ Monitor KVM (Keyboard Video Mouse) allows secure, remote CPU location with extended range and sustained transfer rate using a HDBaseT technology over fiber optical communications link for ultra-high resolution video and audio, Ethernet, controls and USB peripheral data.
The solution offers a distance of up to 80 kilometers between server and monitor with minimal latency.
- TEMPEST Level A (Zone 0)
- RÖS U1
- Resolution: 4K (3840×2160 pixles)
- No Compromising Emanations
- HDBaseT Fiber Optical Link
- Moves the information from the desk to a protected/ locked area
- No Operation System installed on the Monitor
Technical Data & Features
Screen
- Size: 32 inch. (Viewing area: 405 (H), 710 (W) mm
- Resolution: HDMI 4K (3840×2160 pixles) (16:9 aspect ratio)
HDBaseT Fiber Optical Links
- Wavelength: 850nm/1300nm/1550nm. The fiber optic component is of type SFP, where “P” stands for “Pluggable”. The type of SFP is selectable to match the distance in the application
- Fiber optical connector: LC
- Optical system budget: Depends on type of SFP
- Typical distance: In multimode fiber it is up to 300m. For single mode fiber depending on the selected type of SFP, the distance is up to 80 km
USB
- USB support: HDBaseT USB 2.0
- Connector: LC
TOSLINK
- Audio Format: Supports all standard formats, such as Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
- Connectors: Two (2)JIS F05 (JIS C5974-1993 F05), IN and OUT
Power Supply
- AC: 100VAC-240VAC IEC 320 3-pin
- AC-connector: IEC 320, 3 pin
- Power consumption: Max 100 W
Environmental
- Temperature range: Operating, +10 to +40 C C. Storage, 0 to +70 C
- Relative humidity: Operating, 5 to 95 % . Storage, 5 to 95 % non condensing.
Regulatory compliance
- Safety: CE
- Environmental: Complies with appropriate requirements of RoHs and WEEE
Dimensions and Weight
- Physical size: (with stand) 474(H), 745 (W), 241 (D) mm
- Weight: (with stand) 20 kg
