Data Diode Middleware 1.0 (DDMW)

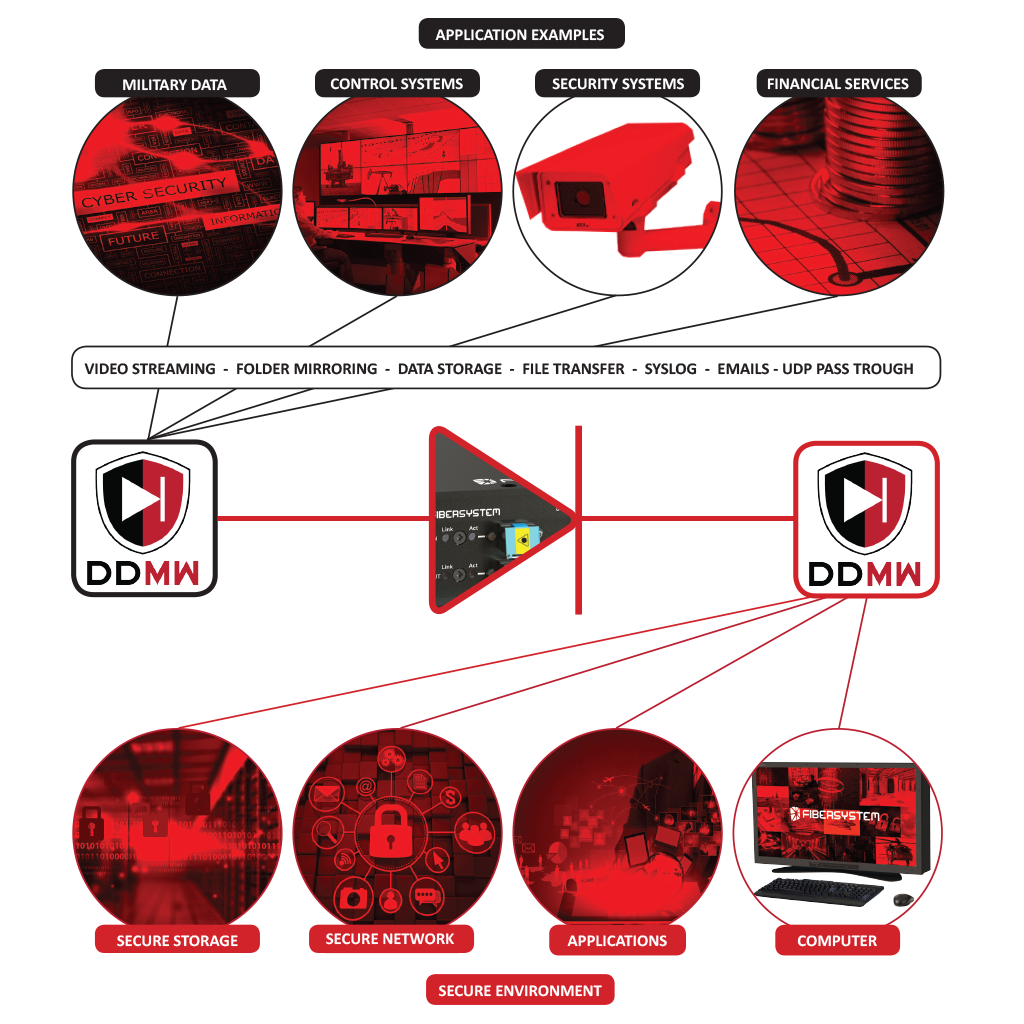

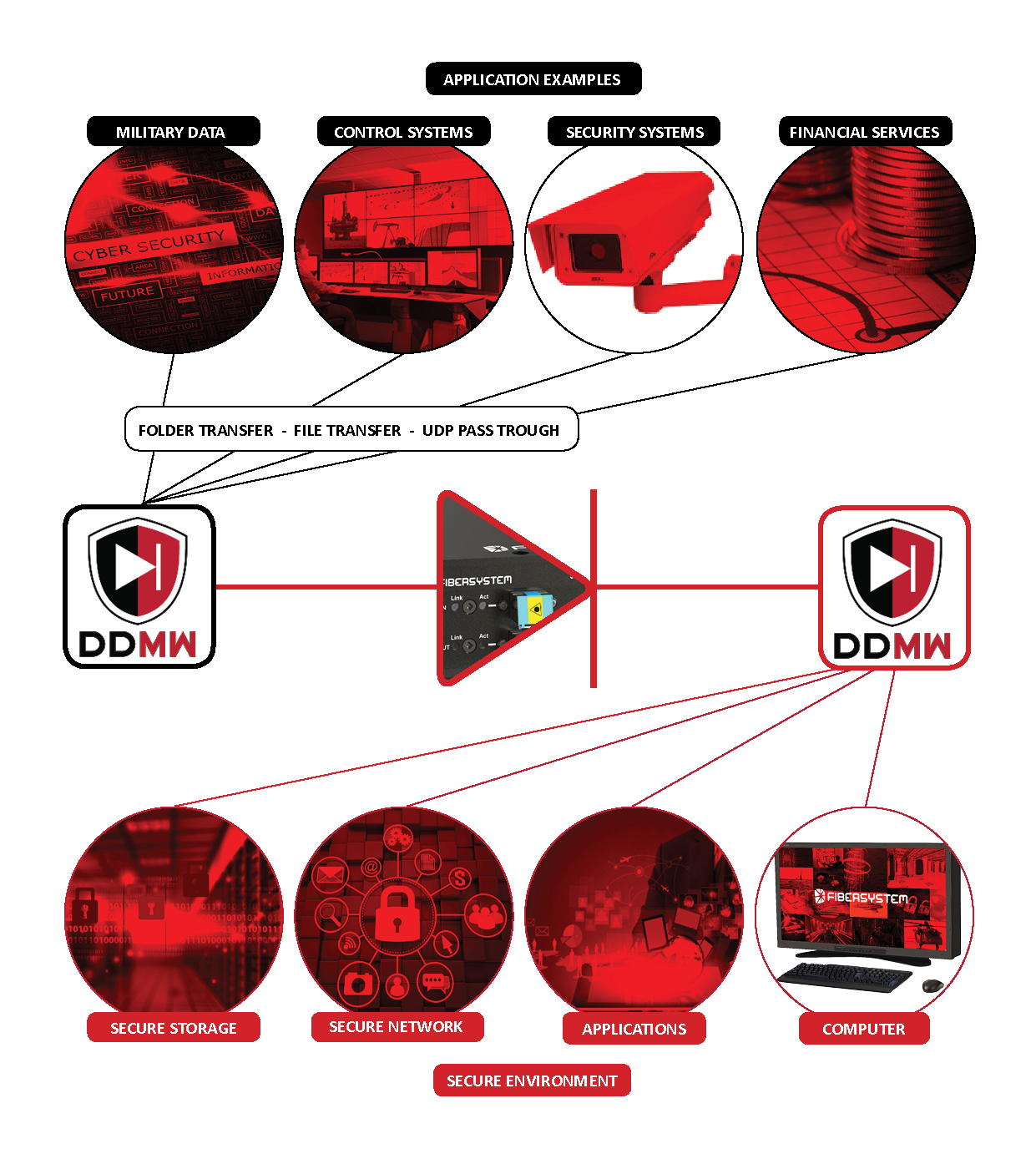

The Data Diode Middleware (DDMW) is a software solution for transferring data over data diodes in such a controlled manner. It consist of a sender node and a receiver node which communicate through a uni-directional ethernet Data Diode.

DDMW supports two kinds of transfer types; messages and streams. Messages are any type of data with a finite and predefined length, like files and command instructions. Streams are data which either do not have an end or which does not have a predetermined length, such as an audio or video stream.

DDMW 1.0 Features

  • Easy-to-use integration interface
  • Administrative role separation
  • Separate frontend/external and backend/internal systems
  • Full unidirectional system separation
  • Uncomplicated interface for SCADA application integrations
  • High-assurance separation of security domains
  • Separated role interfaces
  • Separated administrator role permissions

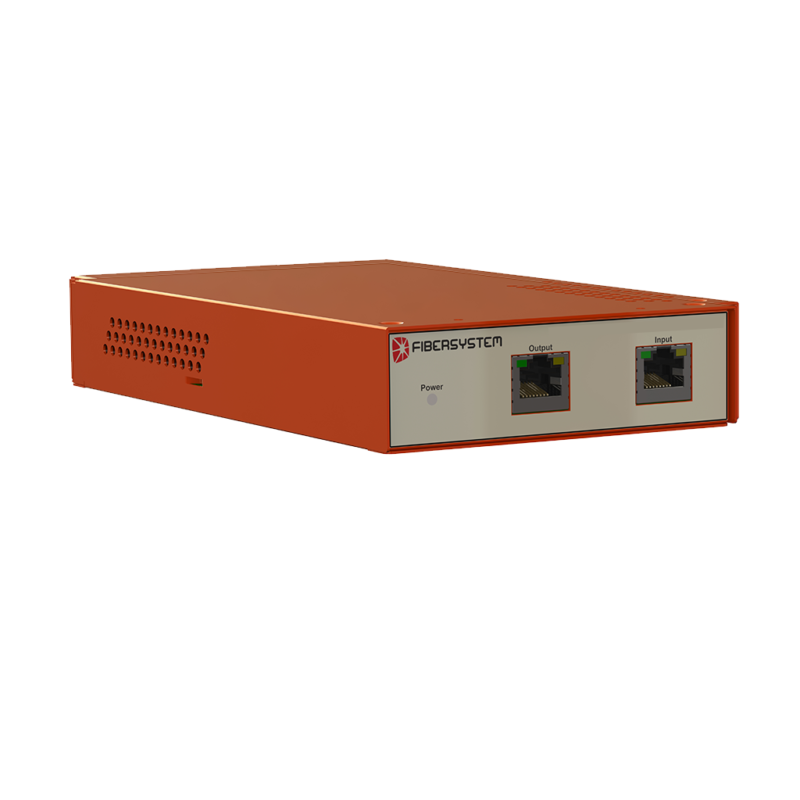

  • Hardware enforced unidirectionalness (With Fibersystem Data Diodes)
  • Transaction logs for traceability

DDMW 1.0 Functionality

  • Transfers are interleaved
  • Adjustable sender packet count, size and pace to allow environment specific optimizations
  • Optional side-channel ACK’s/NACK’s
  • Configurable redundancy
  • Heartbeat packets can be used to make sure link is up (and alert if heartbeats are missed)
  • Management interfaces to the sender and receiver nodes allow integration with monitoring systems.
  • Each transfer is hashed and verified on the receiver node
  • “Immediate mode” allows transfer of large messages to begin immediately rather than wait for the entire message to arrive at the sender node
  • Queue Management
  • Logging

DDMW 1.0 Applications

  • Folder Transfer
  • File Transfer
  • UDP Pass Through

ACK-channel

While acknowledgements cannot be sent over the Data Diode, the DDMW sender has an interface for accepting ACK’s for messages it has sent. An organization can optionally use a side-channel of their own choosing to send ACK’s or NACK’s back from the receiver to the sender. This can be a fully automatic system or a manual system like an operator calling another operator and verbally communicating ACK or NACK together with a unique transfer identifier.

For more information, please see Datasheet

Technical Data

DMW SW and HW requirements

  • DDMW Sender/receiver node OS
    • Ubuntu 18.04 LTS
    • RedHat 6&7
    • CentOS

DDMW HW (recommended)

  • Midrange XEON
  • 16GB RAM
  • INTEL NIC
  • SSD disk or better PCI-E SSD

For more information, please see Datasheet

Datasheet

FS17101-Datadiode-Middleware-DDMW-1.0-Datasheet.R1

Questionnaire (pdf-form)

Fibersystem Data Diode Questionnaire FORM
