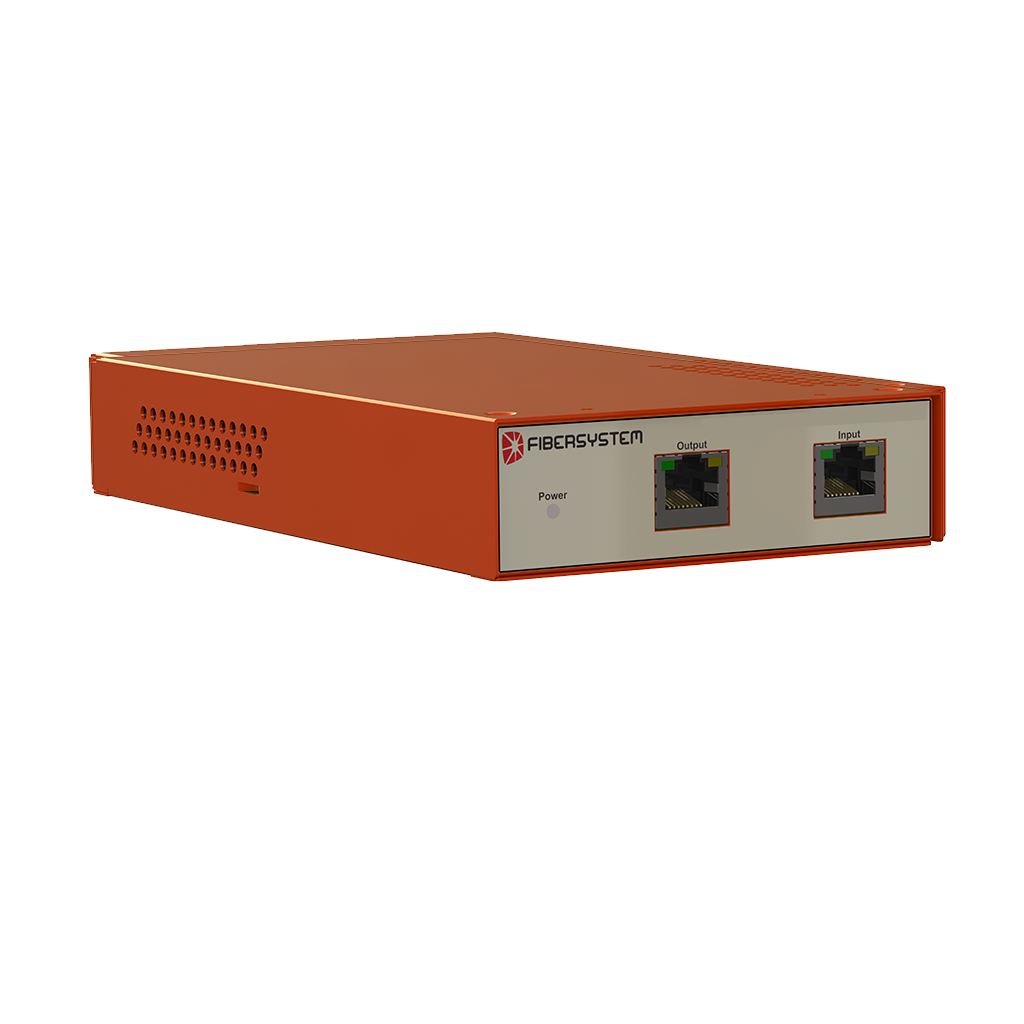

Data Diode 100BaseTX to BaseTX (50-805)(Stand Alone)
The Fibersystem Data Diode 100 Mbit is a stand alone unit with hardware-based unidirectional communication solution (Simplex) that completely eliminates the risk of data leakage or reverse transmission.
The system operates fully transparently for all data types and supports key network protocols such as Syslog, NTP Broadcast, SNMP traps, and all forms of UDP communication — including Unicast, Broadcast, Multicast, and Manycast.
Features
- Stand Alone Unit
- One-way connection between two networks (also known as Simplex)
- Based on hardware, no extra software needed. This completely eliminates the risk for data flowing in false direction
- Fiberoptical links for galvanic seperation between networks
- Can be used in any ethernet application using fiber or copper connectivity
- All data will be transparently forwarded
- Ethernet based, UDP support (Syslog, NTP, SNMP traps)
Security Features
- Tamper proof enclosure
- Riveted and sealed enclosure by default for assurance
- EMC and back channel protected in hardware design
- No crosstalk
- Multiple unidirectional barriers.
- The card modules can be integrated in your existing solution/ product
Fiber optic links
- Data speed 100 Mbps
- Copper 100BaseTX
- Fiber optical connector In RJ45
- Fiber optical connector Out RJ45
Environmental
- Temperature range Operating, +10 to +40C. Storage, -40 to +70C.
- Relative humidity Operating, 5 to 95%. Storage, 5 to 95% non condensing.
Regulatory compliance
- Safety: CE
- Environmental: Complies with appropriate requirements of RoHs and WEEE
Dimensions and Weight
- Physical size 115(H), 20(W), 195(D)mm/ 4.5(H), 0. (W), 7.7(D)inch
- Weight 0.15kg/ 0.33lbs.
