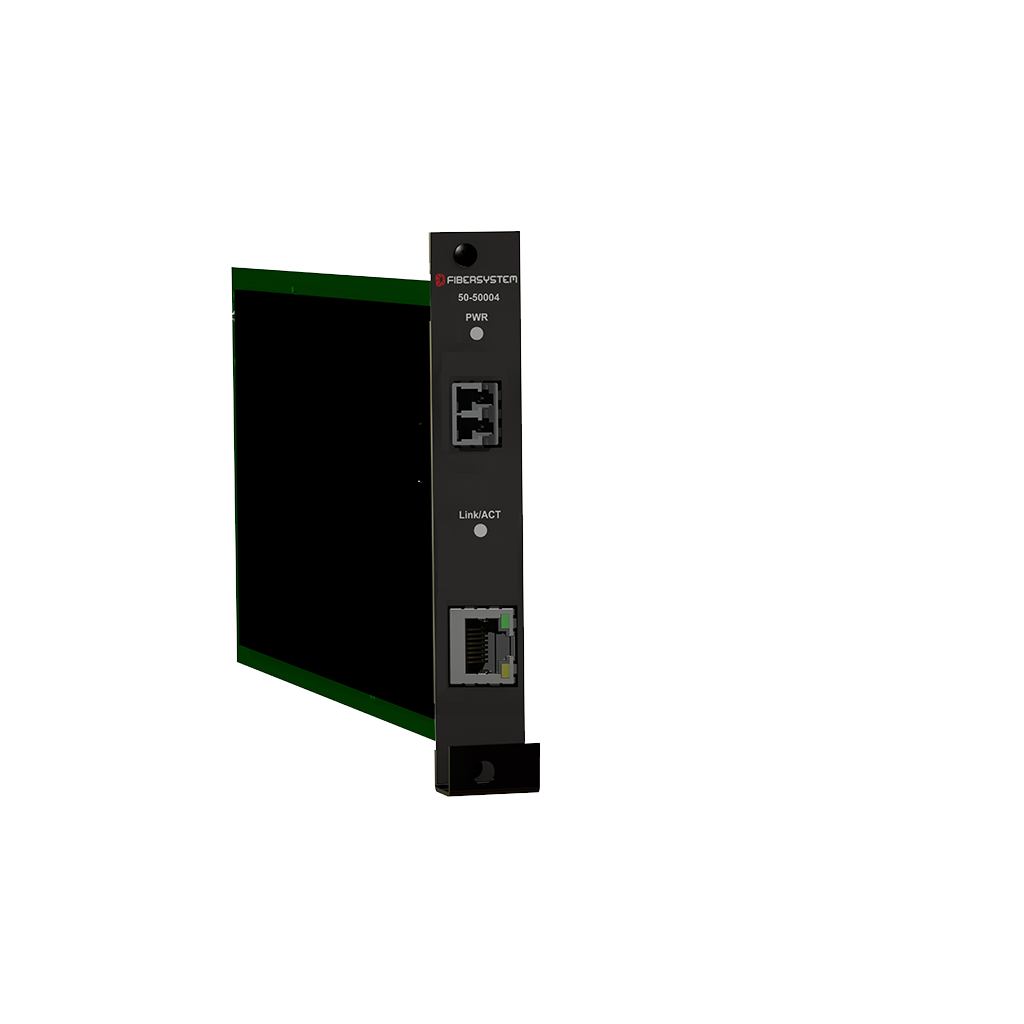

Card Module 1000BaseT-1000BaseSX/LX LC
Fibersystem Card Module 1000BaseT-1000BaseSX/LX LC converts 1000Mbps copper link (RJ45 connector) to 1000Mbps fiber optic link (LC connector). It allows distances up to 2 km. Fibersystems Rack system is designed to provide a flexible manageable system for cardmodules. With its modular architecture and add-as-you-grow design it serves as the optimal platform for small and large installations. (Accessory to Fibersystem Rack System)
Product Description
- Can be used in any 1000Mbit Ethernet application using fiber or copper connectivity
- The fiber optic link allows distances up to 2 km.
- Fiber optical link provides galvanic separation between networks
- Fiber optical link provides protection against interference
- Fiber optical link provides protection against electromagnetic eavesdropping
- All data will be transparently forwarded
Technical Data & Features
Galvanic/Electrical link
Data speed: 1000 Mbps
Fiber optic links
- Data speed: 1000 Mbps
- Protocol: 1000BaseT and 100BaseSX/LX
- Wavelength: 850 nm
- Fiber optical connector: LC
- Fiber: Multi mode 50/125um or 62.5/125um
- Optical system budget:
- Typical distance: 0-2km (3dB system margin for 50/125um, 6dB for 62.5/125um)
Environmental
- Temperature range: Operating, +10 to +40 C C. Storage, -40 to +70 C
- Relative humidity: Operating, 5 to 95 % . Storage, 5 to 95 % non condensing
Power
- 5 V DC (to be used in Fibersystem 50-502 Rack System)
Dimensions and Weight
- Physical size Card: 115 (H), 20 (W), 195 (D) mm / 4.5 (H), 0.8 (W), 7.7 (D) inch
- Weight Card: 0.15 kg / 0.33 lbs.
