HDMI–HDMI Fiber Optic Converter
The HDMI–HDMI Fiber Video Converter is designed for connecting external video sources, such as document cameras, as well as external display devices like a 55” secondary monitor. It can also be used to connect Fibersystem’s projector to a computer with a standard HDMI output, providing a flexible and reliable solution in security-classified environments.
It is equipped with an HDMI video input supporting resolutions up to 4K at 60 Hz, and an HDMI video output with corresponding performance. In addition, it features a fiber-optic HDMI video input with an LC connector supporting 1920 × 1080 at 60 Hz, enabling secure and interference-free video transmission over fiber-optic cable.
Technical Data & Features
I/O-ports
- Video In: HDMI 4K/60 Hz
- Connector: HDMI
- Video Out: HDMI 4K/60 Hz
- Connector: HDMI
- Video In: Fiberoptisk DVI, 1920 × 1080 @ 60 Hz
- Connector: LC
Power
- Mains voltage: 100–240 VAC, 50–60 Hz
- Connector: IEC 60320 C14
- Power consumption typical: 7 W
- Power consumption max: 10 W
Mechanics and Environment
- Dimensions (H × W × D): 32 × 130 × 217 mm
- Weight: 1 kg
Associated products
Document Camera (TEMPEST Level A+ & RÖS U1)
The Fibersystems Document Camera – TEMPEST Level A+ & RÖS U1 is engineered from the Optoma DC556 platform and enhanced with advanced security modifications to fully comply with RÖS U1 and TEMPEST Level A+ requirements. The included remote control enables easy and secure operation at a distance. Designed for seamless integration, the camera connects to a presentation monitor or video conferencing system...
Document Camera (TEMPEST Level B & RÖS U2)
The Fibersystems Document Camera U2/LB is based on the Optoma DC556 with safety-enhancing features and modifications to meet RÖS U2 and TEMPEST Level B. The included remote control is used to operate the document camera. The document camera can be connected to a presentation monitor or a video conferencing system with an electric HDMI output to display documents and images. The document...

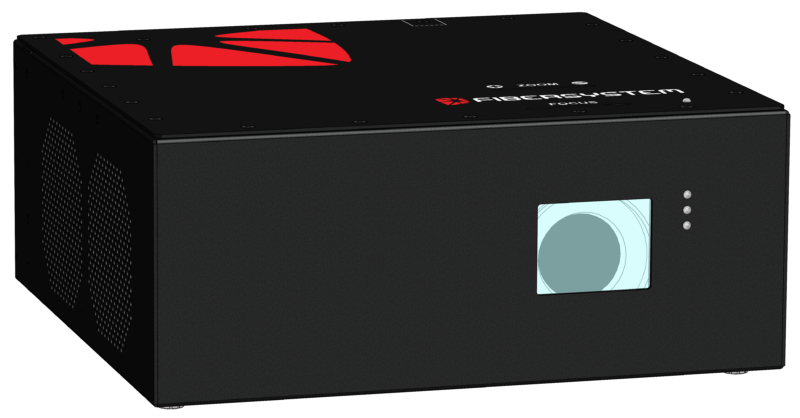

Projector TEMPEST Level A+ and RÖS U1
