Fo converter IEEE C37.94 and E1 over Synchronous Ethernet (SyncE)

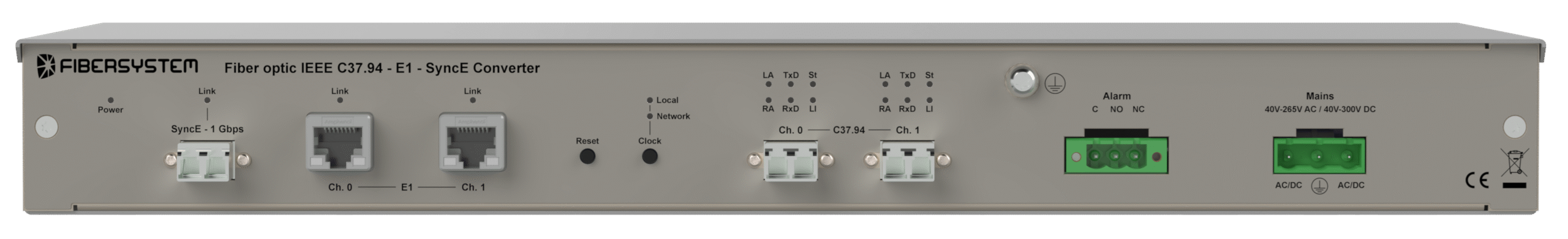

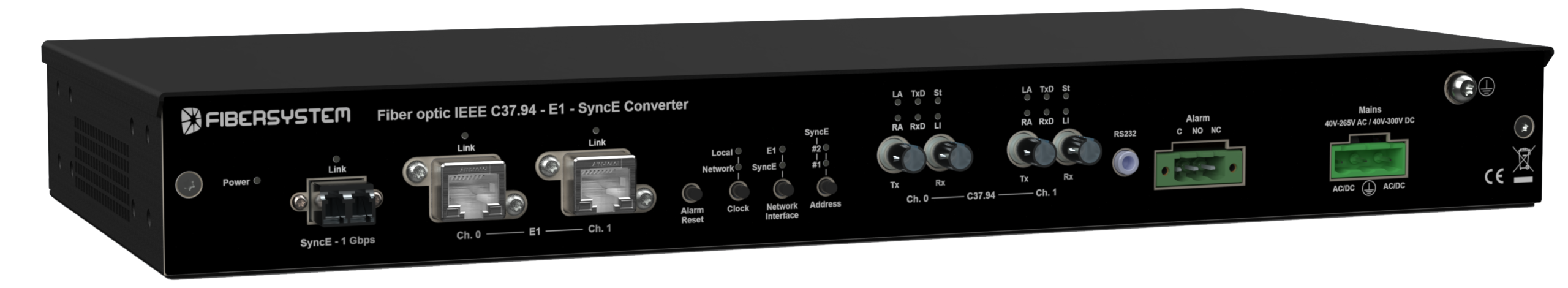

SyncE is an electro-optical converter between two IEEE C37.94 optical ports and/or G.703/704 E1 and synchronous Ethernet and reverse. Both channels are transparently converted into UDP packets and back. Standards compliant for power substation installation.
Product Description
Usage
SyncE from Fibersystem is intended for interfacing substation tele protection equipment with IEEE C37.94 interfaces to a synchronous ethernet network. The two IEEE C37.94 ports can be used separately or in parallel.
The housing 19” rack mounting is standard compliant for power substation installation and can be equipped with two removable power supplies for redundancy, from 48VDC or 230VAC.
Fibersystem products for substation use is built for demanding environments and can withstand 4kV bursts.
IEEE C37.94
Fiber optic interface according to standard “IEEE C37.94-2002, IEEE Standard for N times 64 Kilobit per second”. C37.94 is transparent to protocols and signalling – All data slots are transferred. Both are transparently converted into UDP packets and back.
E1 describes a galvanic G.703 interface with G.704 frames at 2048 kbps commonly used in telecommunication.
Typical application areas
- Substation environment – Differential Relay protection over Ethernet networks
- Industrial communication
- Clock synchronisation
- Telecom
- Broadcasting
Associated products
Fiber Optical Converter G.703-C37.94 E1 820nm Multimode
21-219 is an electro optical multiplexer between one G.703/704 E1 and two IEEE C37.94 (C3794) optical ports. The two IEEE ports are fully mapped into G.703 (G703) standard frame structure of the E1 port, allowing for further SDH/ PDH multiplexing and de-multiplexing. 21-219 derives it synchronization from the network port (E1) or from an internal 2048Kbps PDH compliant clock enabling it to...
Fiber Optical Converter IEEE C37.94 MM/SM
21-203 is a protocol independent optical-electrical-optical long haul converter link with data integrity control for high reliability. The incoming multimode signal is sampled and packaged in 4B/5B code before transmission on the singlemode interface. Incoming singlemode signal is decoded and error detected before reassembled and transmitted out the multimode interface. This conversion method offers a better (lower) error rate for low speed...
Fiber Optical Converter G.703-C37.94 E1 820nm Multimode
21-219 is an electro optical multiplexer between one G.703/704 E1 and two IEEE C37.94 (C3794) optical ports. The two IEEE ports are fully mapped into G.703 (G703) standard frame structure of the E1 port, allowing for further SDH/ PDH multiplexing and de-multiplexing. 21-219 derives it synchronization from the network port (E1) or from an internal 2048Kbps PDH compliant clock enabling it to...
Fiber Optical Extender 80-120km
Fibersystem 21-223 SM/SM Extender (converter) is intended to extend optical reach for low speed data signal into long haul distances. Using a 21-223 the optical short reach signals can be sent without the need for additional and expensive communication systems normally found in long haul communications. When combined with the other products in Fibersystems teleprotection communication product line this converter allows a...
Fiber Optical Conv G.703 Codir C37.94 MM
The Fiber Optical Converter G.703 Codir – IEEE C37.94 (C3794) (21-216) is intended for connecting tele protection equipment to telecom multiplexers at substations. It can also be used to directly interconnect protection equipment and multiplexers to use the IEEE C37.94 standard to interconnect with equipment that only support G.703 interfaces.
