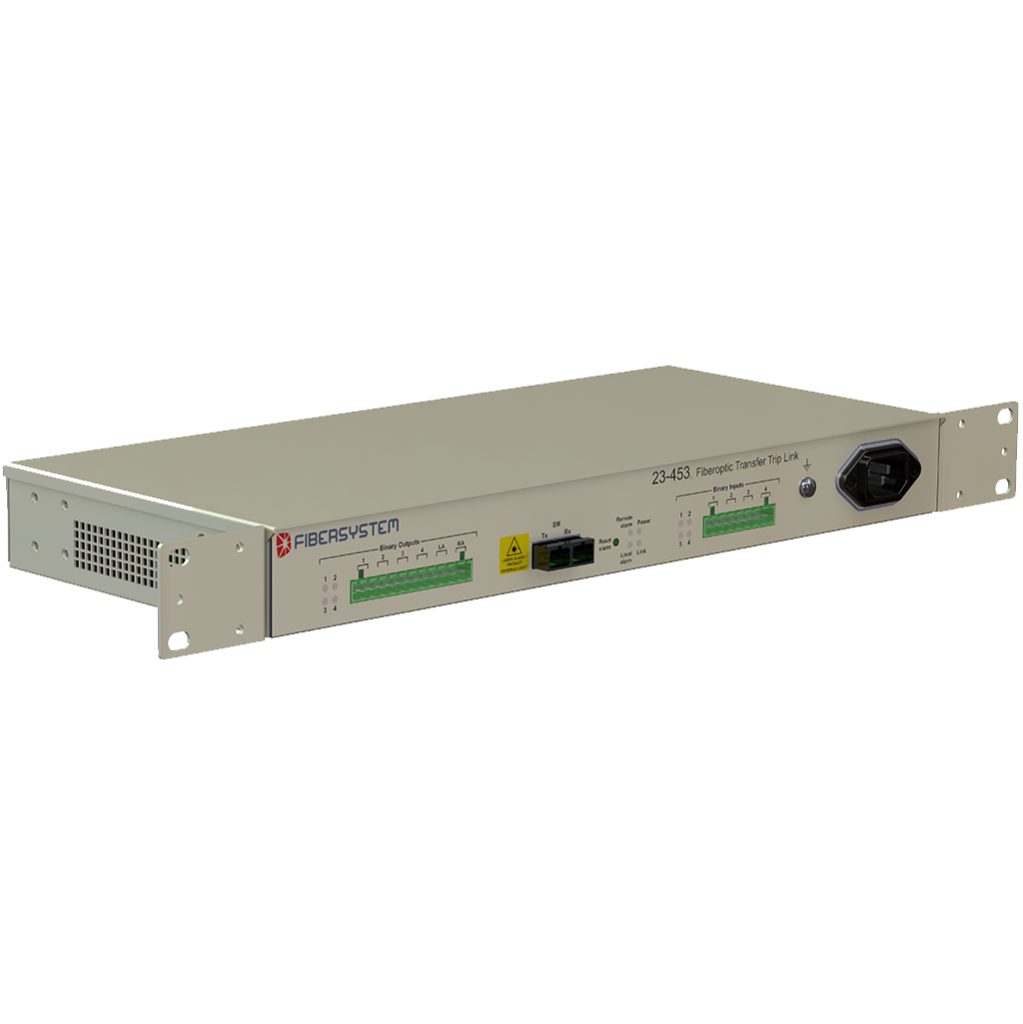

Fiber Optical Trip Link BI:110V. 39dB up to 120km

Fibersystem Fiber Optical Transfer Trip Link (23-450) is intended to be used for remote trip and or sensing to minimize need of local controllers. The link is bidirectional for dual side control or sense back confirmation of command. I.e. a make or brake can be feed back to the controller to verify command action.

Product no: 60-00-5740 (23-453) Category: Tags: , ,

Description

  • • Up to 120km range
    • Wide temperature operating range, -25 to +55°C
    • Wide PSU input range, 48-250VDC or 110-250VAC
    • Fiber Optical transmission, protected against external EMI and RFI
    • Standards compliant for power substation installation

More information

Binary Inputs IEEE C37.94
The 4 binary inputs are galvanic isolated by optical couplers and connected using a pluggable Phoenix-connector for easy installation. The input voltages can be 85 -150 VDC or 176-300VDC depending on product version.

Binary Outputsdirectional interface – Codir
The 4 binary outputs are galvanic isolated by relays and connected using a pluggable Phoenix-connector for easy installation. The output contacts can make up to 30A peak and break any voltage level up to 250VDC at 0.15A.

Optical Linkdirectional interface – Codir
The optical link transfers the binary signals using a fault tolerant protocol to filter out disturbance at the inputs and on the link. The protocol works both on multimode and singelmode fiber with a maximum distance of 2km and 80km respectively.

Function
The 23-45x link extends binary functions bidirectional over medium and long distances. For example transfer trip. The link is self monitored and have a local and a remote alarm signal available both as optical indications and a electrical relay output. The local alarm is latched and remote alarm is extended to ensure proper detection. The alarms have to be reset manually.

Usage
The 23-45x link is intended to be used for remote trip and or sensing to minimize the need for local controllers. The link is bidirectional for dual side control or sense back confirmation of command. For example a make or brake can be feed back to the controller to verify the command action.

By using the bidirectional signals two units can form a permissive, blocking, or direct transfer trip. The fiber optic media allows for an error free transmission and the self correcting protocol ensures no false tripping.

Technical Data

Fiber Optical Link  60-00-5433, 60-00-7318

  • Wavelength 1300nm MM
  • Fiber optical connector LC
  • Optical system budget 10dB in multimode fiber 62.5/125um.
  • Typical distance 2km

Fiber Optical Link  60-00-5556, 60-00-5740

  • Wavelength 1550nm SM
  • Fiber optical connector LC
  • Optical system budget 39dB in singlemode fiber 9/125um.
  • Typical distance 120km

Fiber Optical Link  60-00-7253, 60-00-5977

  • Wavelength 1550nm SM
  • Fiber optical connector LC
  • Optical system budget 50dB in singlemode fiber 9/125um.
  • Typical distance 240km

Binary Inputs x 4

  • 60-00-5433, -5740, -5977 Rated Voltage 110/125VDC ± 20% (88-150VDC)
    Power consumption max 0.2W/input
  • 60-00-7318, -5556, -7253 Rated Voltage 220/250VDC ± 20% (176-300VDC).                                                                                      Power consumption max 0.4W/input

Binary Outputs – Relays x 4

  • Making capacity 30A 0.2s, 10A 1.0s
  • Continuous current. 8A
  • Breaking capacity AC 250V/8A
  • Breaking capacity DC 48V/1A, 110V/0.4A, 220V/0.2A, 250V/0.15A

Transfer Trip Time

  • The propagation delay for signal on fiber is 5ns/m
  • 2km fiber gives delay of 0.01ms
  • 120km fiber gives delay of 0.6ms
  • 240km fiber gives delay of 1.2ms
  • The delay of Binary Input is 1ms
  • The delay of Binary Output is ≤10ms

Power Supply

  • DC 48VDC to 250VDC, ±20%
  • AC 110VAC to 230VAC ±20%, 50−60Ηz
  • AC-connector IEC 320, 3 pin.

Environmental

  • Temperature range Operating, -25 to +55C. Storage, -40 to +85C.
  • Relative humidity Operating, 5 to 95% . Storage, 5 to 95% non condensing.

Designed to meet CE compliance

  • Immunity EN 61000-6-2, EN 61000-6-4, EN 50178

Designed to meet Mechanical

  • Vibration IEC 60255-21-1, IEC 60255-21-2, IEC 60255-21-3

Designed to meet EMC compliance

  • IEC 60255-22-1, IEC 60255-22-2, IEC 60255-22-3,IEC 60255-22-4

Designed to meet Insulation

  • IEC 60255 / EN 50178 , IEC 60255-5, IEC 60255-5

Dimensions and Weight

  • Physical size Heigth 45 mm, Width 483 mm (Without brackets 380mm), Depth 173 mm
  • Weight 3 kg

Datasheet

FS17039-Datasheet-Fiber-Optical-Transfer-Trip-Link(23-450)

Technical Manual

Technical Manual 23-45x
