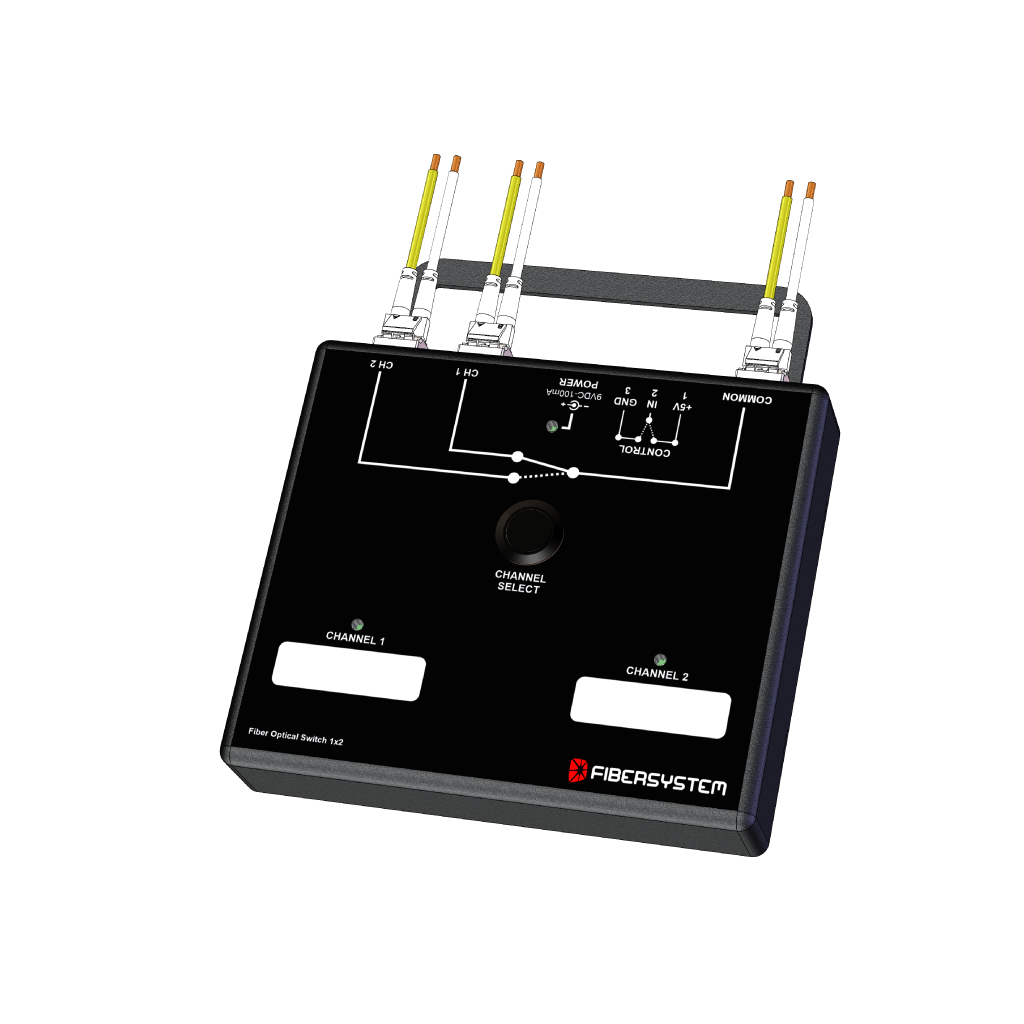

Fiber Optical Switch 1×2 2-channel MM

Evolving media and communication over IP demand high bandwidth network solutions. Fibersystem Fiber Optical a/b Switch is a long term solution for these networks since it is protocol independent and transparent to data speed.

The path through the switch is purely optical!

Product no: 60-00-8274 Category: Tags: , , ,

Description

  • Pure optical path
  • Transparent to data speed
  • Protocol independent
  • Cost efficient
  • Future proof
  • Small desktop switch
  • Controlled via top panel switch
  • Remote controlled via TTL level

Technical Data

Connections

  • Optical Multimode 850/1300 nm
  • Optical channels in 1 LC
  • Optical channels out 2 LC
  • Insertion loss type < 0.3 db
  • Crosstalk -80 db
  • Repeatability ± 0.1
  • Switching time 3.5
  • Durability 30.000.000 Cycles

Power

  • Power Connector Plug
  • Power Supply External 9V DC
  • Current max 0.5 W

Mechanical data and environment

  • Cabinet dimensions (HxWxD) 30x140x130 mm
  • Weight 540 g
  • Operating temperature -5° to 70° C
  • Relative Humidity 10%-80%

Datasheet

FS17078-Datasheet-Fiber-Optical-Switch-1×2-MM
